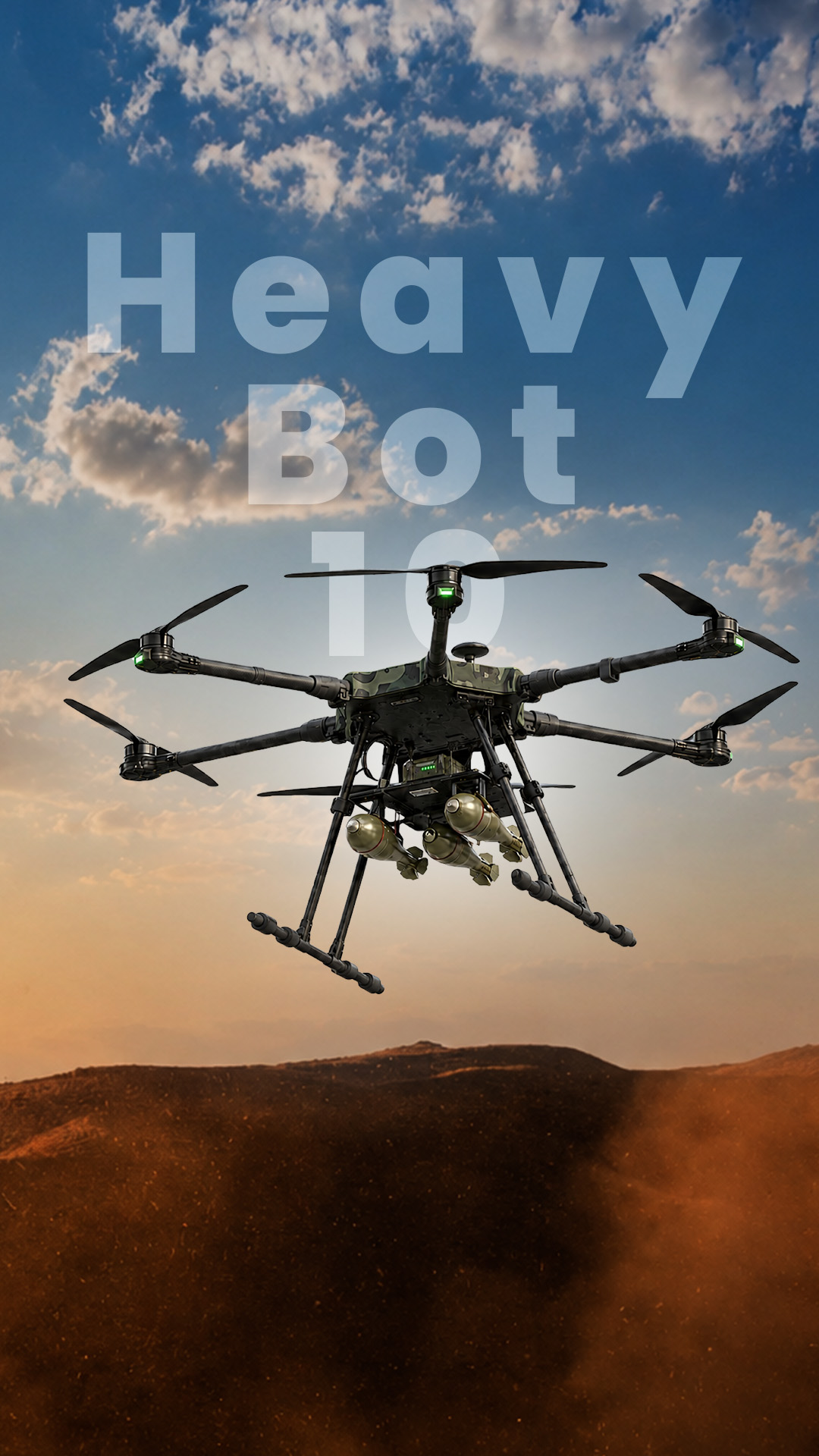

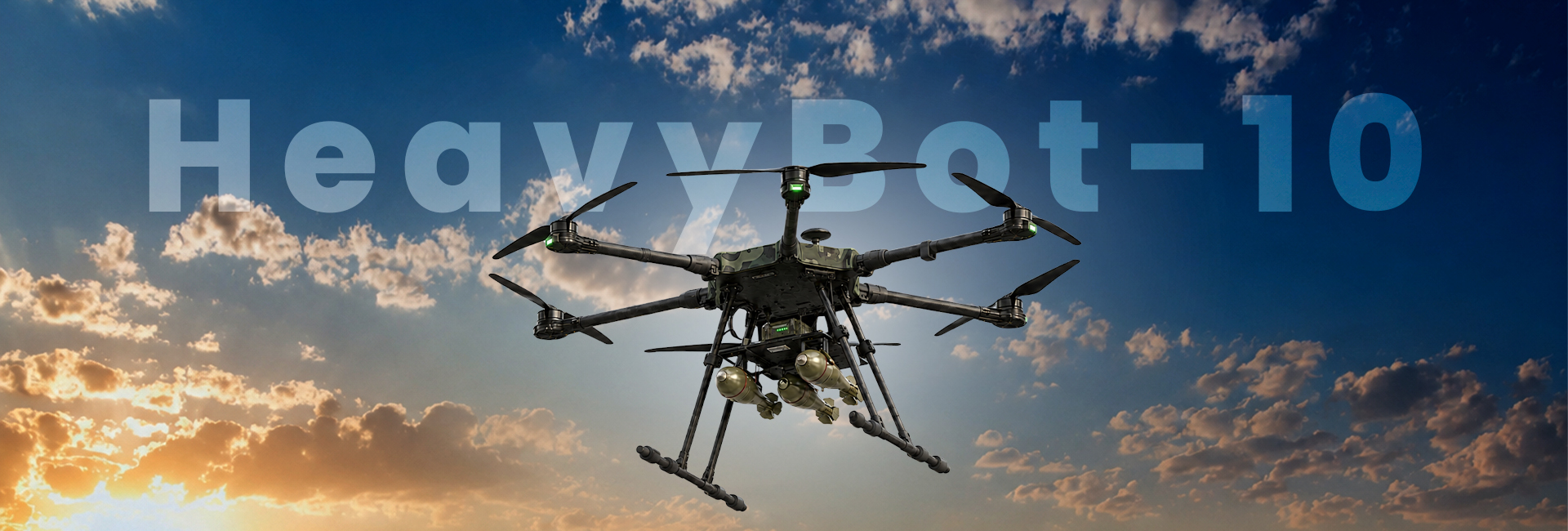

HeavyBot 10 – Heavy-Lift Tactical Defence UAV
Indigenously Developed. Heavy Payload. Mission Ready.
HeavyBot 10 is a heavy-lift tactical hexacopter UAV designed for defence, logistics, surveillance, and reconnaissance operations. Built in India, it delivers reliable performance with up to 10 kg payload capacity, secure communication, autonomous flight modes, and mission-configurable payload integration for demanding operational environments.
Overview
| Type | Hexacopter |
|---|---|
| Take off Weight | 25 Kg |
| Payload | 10 Kg (Weapons, etc.) |
| Launch Altitude | 3000 m |
| Flight Height | 200m (AGL) |
| Speed | 22 m/sec |
| Range | 15 km |
| Propeller | 24 inches |
| Flight Time | 40 mins |
Specifications
| GPS | GPS + Galileo + GLONASS + BeiDou + NavIC |
|---|---|
| Camera MP | 8 MP RGB+NIR |
| EO/IR Camera with 3-axis gimbal | Day & Night |
| Battery Capacity | 40000mAh |
| Flight Conditions | Anti jamming using optical cable, SDR (Software Defined Radio) & CNR (Combat Net Radio) if permitted |

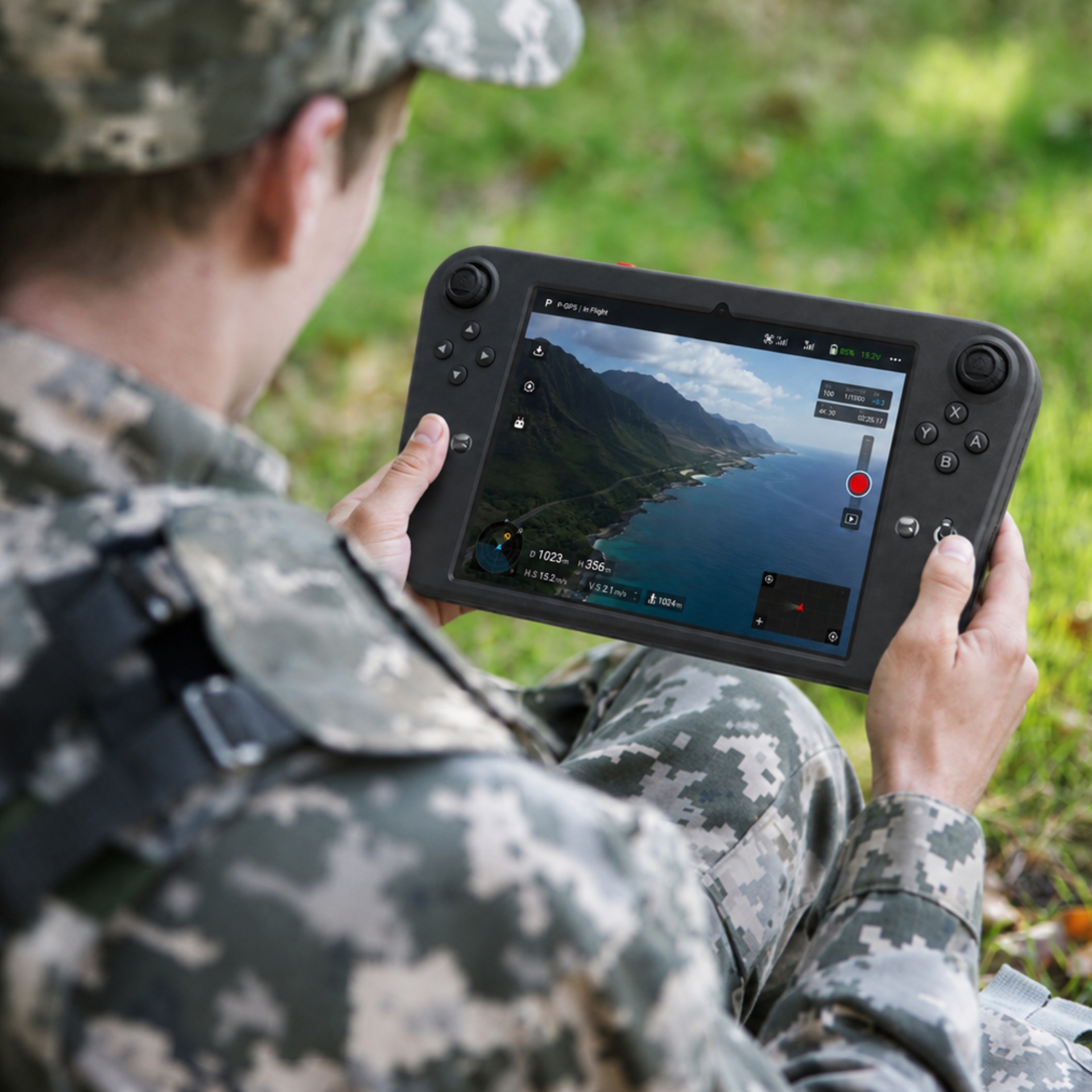

| GCS | Multilingual (Hindi, Tamil, Telugu, Punjabi etc.) |
| Target Tracking | Camera worked object tracking |
| Navigation Security | AES 128/256, Encrypted Communication |
| Drone type | Hexacopter |
|---|---|
| Maximum Take off Weight (MToW) | Up to 28 Kg |
| Payload & Type | Up to 10 Kg |
| Launch Altitude (AMSL) | Up to 5000m |
| Height (AGL) | Up to 500m(AGL) |
| Speed | Up to 22 m/sec |
| Range | Up to 15km |
| Propeller | 24 inches |
| Max Flight Time | Up to 40 mins (without payloads) |
| Drone type | Hexacopter |
|---|---|
| Maximum Take off Weight (MToW) | Up to 28 Kg |
| Payload & Type | Up to 10 Kg |
| Launch Altitude (AMSL) | Up to 5000m |
| Height (AGL) | Up to 500m(AGL) |
| Speed | Up to 22 m/sec |
| Range | Up to 15km |
| Propeller | 24 inches |
| Max Flight Time | Up to 40 mins (without payloads) |
Why Choose HeavyBot 10
Carry up to 10 kg of mission equipment, logistics supplies, ISR sensors, or specialized payloads without compromising flight stability.
Supports AES 128/256 encryption and Frequency Hopping for reliable communication in electronically contested environments.
Operate in Autonomous, Manual, or Return-to-Home (RTH) modes for safer and more efficient mission execution.
Optional AI-powered Detection, Recognition & Identification (DRI) and object tracking enable smarter surveillance and target monitoring.
Compatible with EO/IR cameras, LiDAR, mapping sensors, logistics payloads, communication relays, and customized mission equipment.
Designed, engineered, and manufactured in India to support Make in India and Atmanirbhar Bharat defence initiatives.
Offers up to 15 km operational range with reliable navigation using GPS, Galileo, GLONASS, and optional NavIC support.
Engineered for demanding defence environments with optional IP65 protection, CRPA integration, and operation from −10°C to +55°C.
Why Choose HeavyBot 10
Heavy Payload Capacity
Long-Range Operations
Autonomous Mission Capability
AI-Based Intelligence
Modular Payload Integration
Indigenous Defence Platform
Rugged Tactical Performance
Secure Military Communication
Applications of HeavyBot 10
Military Logistics
Transport ammunition, supplies, and mission-critical equipment.
Surveillance & Reconnaissance
Provide real-time aerial intelligence and battlefield awareness.
Border Security
Monitor sensitive border regions with persistent aerial surveillance.
Emergency Response
Deliver medical supplies and support disaster relief operations.
Payload Deployment
Carry specialized payloads for tactical and mission-specific operations.
Alternate Possibilities
The modular payload architecture of HeavyBot 10 enables rapid integration of mission-specific payloads, allowing a single platform to adapt to diverse defence, surveillance, and logistics operations.

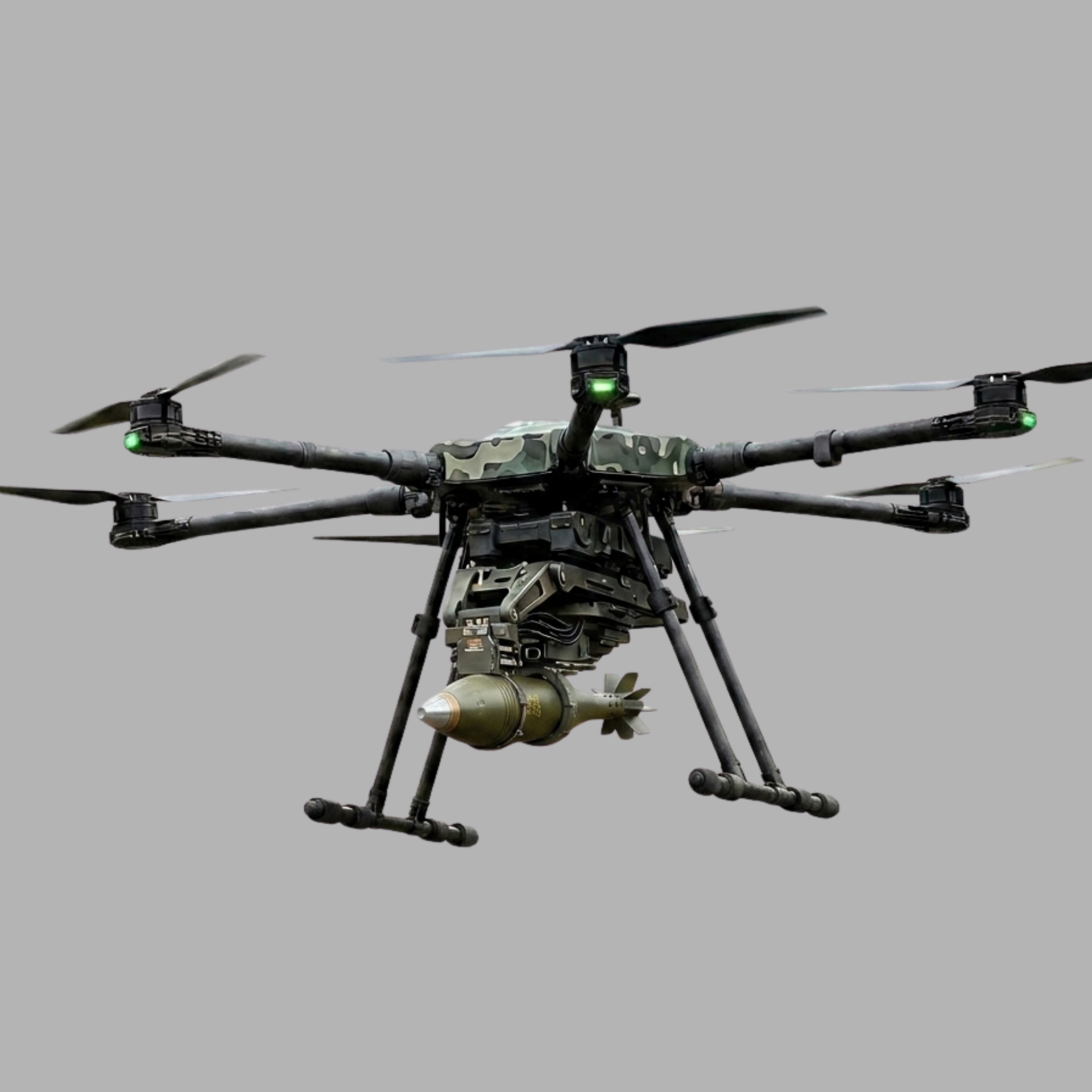

Munitions
Integrate precision munitions for tactical strike missions, target engagement, and mission-specific defence operations with secure deployment capability.
Grenade Launcher
Support controlled grenade deployment for specialized military operations requiring precision, safety, and mission flexibility.
LiDAR Sensor
Generates highly accurate 3D terrain models, elevation data, and obstacle mapping for mission planning and autonomous navigation.
Hyperspectral Sensor
Identifies materials and surface characteristics through spectral analysis, supporting environmental monitoring, camouflage detection, and specialized reconnaissance missions.
